At the scale where a network outage carries real operational or safety consequences, you need a platform designed for that reality from the ground up. Not one that was adapted to handle it. UltraMax is built for environments where coverage is large, device density is high, and downtime is not an acceptable outcome.
UltraMax is the platform for environments where coverage requirements are large, device density is high, or uptime cannot be compromised. It scales incrementally to as many as 20,000 simultaneous UE connections without a forklift upgrade, add capacity as your deployment grows.
High-reliability configurations support redundant vCore, designed for manufacturing environments, ports, and venues where a network outage carries operational or safety consequences. The platform runs on COTS server hardware with Intel Xeon Scalable processors in a standard 19-inch 1U rack form factor.
vRAN
vCore #1
vCore #2
NMSUltraMax hardware stack vRAN, vCore #1, vCore #2, and PTMS on Intel Xeon Scalable · 19" 1U · 100/240 VAC
| Configuration | Max Ues | Max Rus | Throughput |
|---|---|---|---|
| Small | 512 | 32 | 5 Gbps |
| Middle | 1,024 | 64 | 10 Gbps |
| Large | 20,000 | 128 | 20 Gbps |

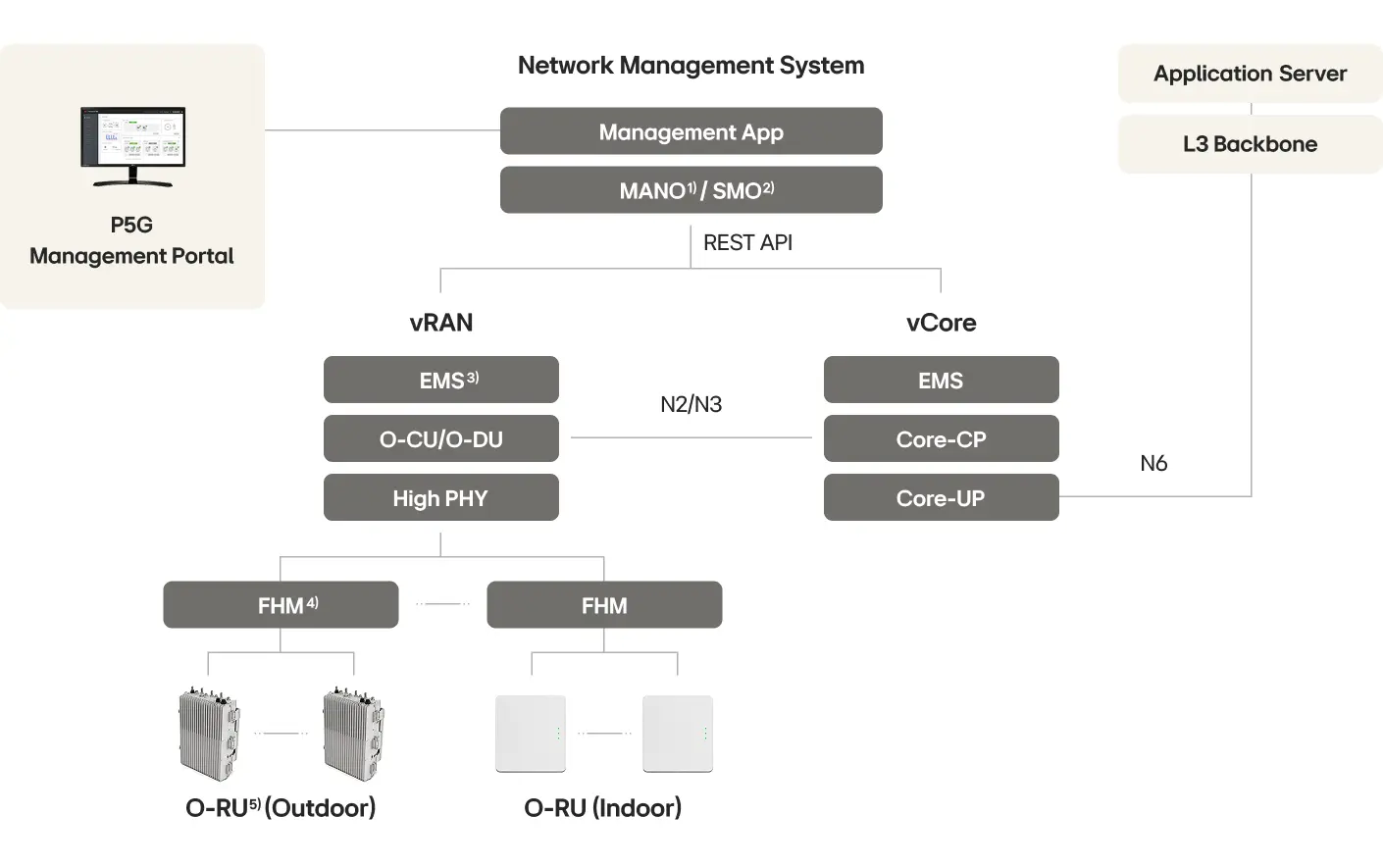

UltraMax separates vCore, vRAN, FHM, and RU into independent, scalable components. Each layer scales independently add cells, add RUs, add capacity without touching the core.
Manufacturing plants, distribution centers, ports, and campuses with large coverage footprints and high device density. UltraMax supports the RU count and cell configuration required for complex multi-zone environments.
Where downtime carries operational, safety, or financial consequences. Redundant vCore and vRAN configurations provide the high-availability architecture healthcare, manufacturing, and port environments require.
Start at Small configuration and scale incrementally to Large without replacing existing infrastructure. UltraMax grows with your deployment, additional radio units and capacity on the same platform.
