Private 5G has a reputation for being complicated to manage. PTMS is built to change that. It ships with every LG Private 5G deployment, manages the full stack from a single interface, and is designed to be operated by your existing IT team no cellular engineering background required.
| Network Monitoring | Real-time visibility across all nodes, RUs, and connected devices |
|---|---|
| SIM/eSIM Provisioning | Full device lifecycle management onboard, modify, revoke |
| Performance Analytics | Throughput, latency, connection quality, and utilization reporting |
| Fault Management | Alerting, event logging, and escalation tracking |
| Configuration Mgmt | Radio parameters, QoS policy, and core configuration |
| Remote Updates | Firmware and software updates pushed remotely no site visit required |
| REST API | Northbound REST API for integration with existing IT/OT systems |
| MANO / SMO | O-RAN-compliant Service Mgmt & Orchestration (O1, A1, E2, M-plane interfaces) |
| PTMS Deployment | PTMS is available in both on-premises and cloud modes. |
Operating Private 5G shouldn't require a cellular background, and with PTMS it doesn't. PTMS is the single interface to your entire Private 5G network, presented through the same operational lens your team already uses: dashboards, alerts, device lists, and policy controls that work the way enterprise IT software works.
It ships with every LG Private 5G deployment and runs the complete stack from one place: vCore, vRAN, Fronthaul Multiplexers, and Radio Units. Your LG partner handles deployment and configuration; from there, everything your team needs to operate the network lives in PTMS, with no separate tools to stand up alongside it. Both UltraSlim and UltraMax are managed through PTMS runs both on-premises and in the cloud, so your team can manage the network from anywhere with no dedicated on-site management server.
PTMS includes pre-configured templates for the most common enterprise network architectures. Your partner applies the right template at deployment, and your IT team takes over a network that's already organized the way your operation works.
Pre-configured OT slice with dedicated bandwidth and latency policy for production systems, a separate IT slice for back-office and management traffic, and a guest slice for contractors and visitors. Each slice is isolated by architecture, not by firewall rule.
HIPAA-aligned template with a dedicated clinical device slice for patient monitoring and medical equipment, isolated from the general hospital network. Staff and guest connectivity on separate slices with appropriate access controls from day one.
Campus template covering indoor and outdoor coverage zones, employee device connectivity, and a separate IoT slice for building automation, access control, and environmental sensors. Single management view across the full campus footprint.
Optimized for high-density scanner and AMR environments with QoS policy prioritizing real-time robot control traffic. Separate slices for warehouse management system connectivity, worker devices, and dock automation equipment.
Template built for environments with regulatory requirements: strict OT/IT segmentation, SIM-based device authentication enforced on all slices, on-premises data handling, and audit logging enabled by default. Designed to support HIPAA, CMMC, and IEC 62443 documentation requirements.
Templates are a starting point, not a ceiling. Your LG partner can build a custom configuration for environments with specific coverage requirements, unique slice architectures, or integration needs that go beyond standard deployment patterns.
Real-time status across every node, every RU, and every connected device. See throughput, latency, connection quality, and coverage performance in a single dashboard. Know when something changes before your operations team feels it.
Every device on your network connects via SIM or eSIM authentication. PTMS manages the full device lifecycle through provisioning new devices, modifying access policy, and revoking credentials when equipment is retired or lost. No shared passwords. No RADIUS complexity.
Historical performance data, utilization trends, and capacity reporting across the full network. Use the data to justify capacity expansion, demonstrate SLA compliance, or identify coverage gaps before they affect operations.
Configurable alerting on network events, hardware faults, and performance thresholds. Every event is logged and timestamped, giving your team and your LG partner a clear trail for troubleshooting, escalation, and root cause analysis.
Each slice has its own QoS parameters, access policy, and performance monitoring view.
Radio parameters, QoS policy, and core configuration changes are applied remotely through PTMS, no site visit required. Software updates for the full stack are pushed remotely, keeping the platform current without a truck roll for every release.

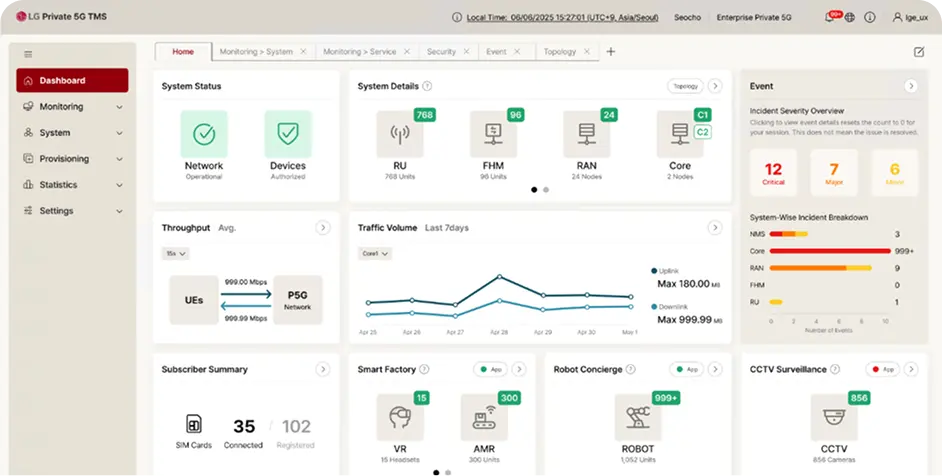

The PTMS main dashboard provides an at-a-glance overview of the entire Private 5G network, allowing operators to manage and control everything from this single page.
Real-time system status, throughput, connected devices, and service health across all network slices

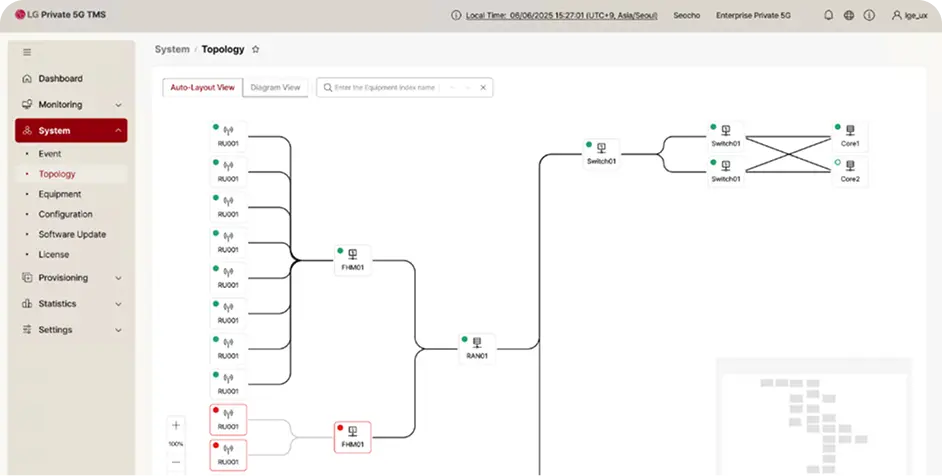

PTMS topology view showing network map: Radio Units connecting through FHMs to vRAN, then to redundant switches and vCore servers
Visual map of the full network: RU → FHM → vRAN → vCore, with live health status on every node
PTMS is complete on its own, so you can run the entire network from it without connecting it to anything else. But you may not want a separate screen to watch. PTMS exposes a northbound REST API, so network events, device status, and alerts flow straight into the tools your team already runs. Private 5G becomes another source in your existing operations view, not a separate system to monitor.
PTMS exposes documented northbound APIs built on REST and O-RAN standards, not a proprietary interface to reverse-engineer. Your team or your LG partner scopes the integration, builds the connection, and tests it against your environment using interfaces your developers already know how to work with.
The APIs are live in current production deployments, not a roadmap item. If integration with your IT or OT systems matters to your evaluation, raise it during your site assessment and your partner will scope the work against your actual stack.
Evaluating the integration in depth? Ask your LG specialist for the API documentation and we'll get your technical team what they need to validate the fit against your environment.
PTMS is built for the IT teams that run enterprise environments, not for 5G specialists. Day-to-day monitoring, device management, and reporting are accessible to your IT staff without requiring RF expertise.
Your LG partner handles initial configuration, ongoing maintenance, and any changes that require deeper platform knowledge. Role-based access controls ensure each party sees exactly what they need, nothing more.
PTMS is not an add-on license or an optional management module. It is the management system for the LG Private 5G platform, included with UltraSlim and UltraMax deployments, configured by your LG partner as part of the deployment engagement. If you've deployed Private 5G with LG, you have PTMS. If you're evaluating LG, every demo and site assessment includes a PTMS walkthrough.
